UPOZORNĚNÍ

Vážení zákazníci, ve státní svátky 5. a 6. 7. 2024 budou všechny naše pobočky K&V ELEKTRO zavřené a nebude dostupná ani naše zákaznická linka. Výdejna na pobočce Smíchov pro Vás bude otevřena od 7.00 do 20.00. Děkujeme za pochopení.

Velkoobchod a registrace

Elektroinstalační materiál

Svorky, svorkovnice

Stoupačkové, průchozí a rozbočovací svorky

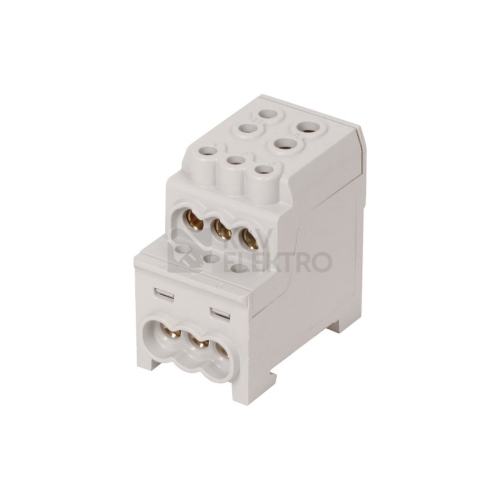

Svorkovnice pro rozdělení fází UVB 200 L G 1P 080030-0-4 šedá 1006064

e-shop: skladem externě (4 ks), doručíme: pondělí 8.7.

489,59 Kč

/ 1 ks

404,62 Kč bez DPH

Objednací kód

1650600

Značka

Hora eTec

Dodavatelský kód

1006064

EAN

4051589800303

Často se kupuje společně

Celkem

Kč

Popis, parametry a manuály

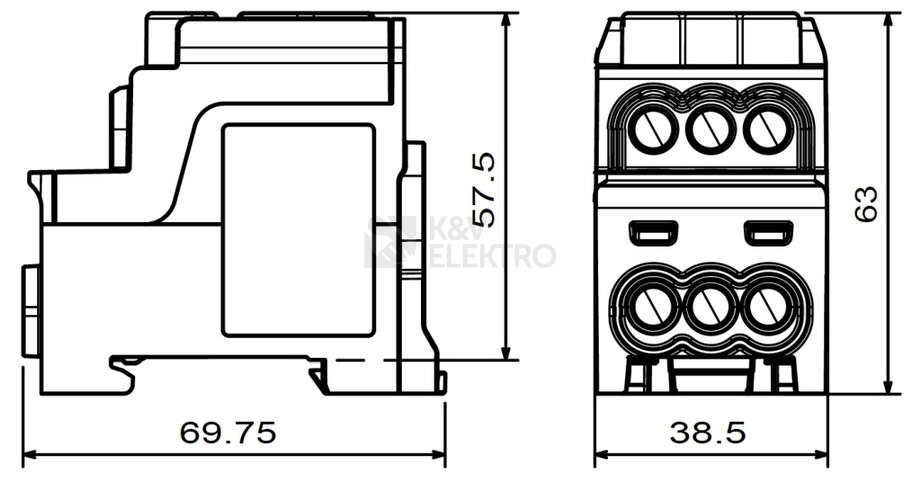

Blok pro rozdělení fází UVB 200 L G, 1pólový, jmenovitý proud 200A, jmenovité napětí 1000V AC / 1500V DC, barva šedá, montáž na DIN lištu, krytí IP20, vstup 1x70mm2, výstup 1x35mm2, 6x16mm2.Bloky pro rozdělení fází (rozváděčové bloky) UVB 200 slouží pro rozdělení přívodního kabelu/vodiče o průřezu max. 70 mm2 a 6 menších průřezů o hodnotě max. 16mm2. Bloky šetří místo v rozváděčích (vestavná šířka pouze 38,5 mm), protože jsou svorky umístěné nad sebou. Díky plastovému krytu je zajištěna ochrana před nebezpečným dotykem živých částí. Jsou určeny k instalaci na nosnou lištu 35 mm. Proudová zatížitelnost je až 200 A. Mosazná svorka je vhodná pro měděné vodiče. A nabízí se v pěti barevných variantách - šedá, modrá, zelená, hnědá a černá. Vodiče se do svorek po odizolování připevňují pomocí šroubového spojení. Šroub dosedá přímo na vodič, proto je nutné jemně slaněné vodiče opatřit dutinkou. Dutinka ale zvětší průřez vodiče a proto je nutné připojovat slaněné vodiče o řád menší než uvedené průřezy. U pevných vodičů toto není nutné.Hlavní přednosti:• montáž na nosnou lištu• úspora místa uvnitř rozváděče• dostatek připojovacích míst• jmenovité napětí 1000V AC / 1500V DC
