UPOZORNĚNÍ

Vážení zákazníci, ve státní svátky 5. a 6. 7. 2024 budou všechny naše pobočky K&V ELEKTRO zavřené a nebude dostupná ani naše zákaznická linka. Výdejna na pobočce Smíchov pro Vás bude otevřena od 7.00 do 20.00. Děkujeme za pochopení.

Velkoobchod a registrace

Elektroinstalační materiál

Hromosvody a uzemnění

Zemnící svorky

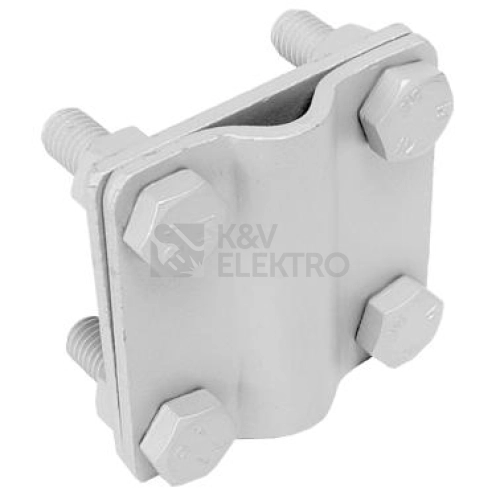

Svorka páska-drát SR 3b TREMIS V120

tip K&V

Pozinkovaná svorka páska-drát SR 3b od TREMIS a je určena pro spojení zemnící pásky o rozměrech 10 x 4 (3,5) mm a vodiče v elektroinstalaci domu. Spolehlivé propojení pásky a vodiče je velmi důležité pro kvalitní uzemnění.

e-shop: skladem (1 198 ks), doručíme: zítra

36,12 Kč

/ 1 ks

29,85 Kč bez DPH

Objednací kód

1214479

Značka

Tremis

Dodavatelský kód

V120

EAN

8595614702300

Často se kupuje společně

Celkem

Kč

Popis, parametry a manuály

Pozinkovaná svorka páska-drát SR 3b od TREMIS a je určena pro spojení zemnící pásky o rozměrech 10 x 4 (3,5) mm a vodiče v elektroinstalaci domu. Spolehlivé propojení pásky a vodiče je velmi důležité pro kvalitní uzemnění.

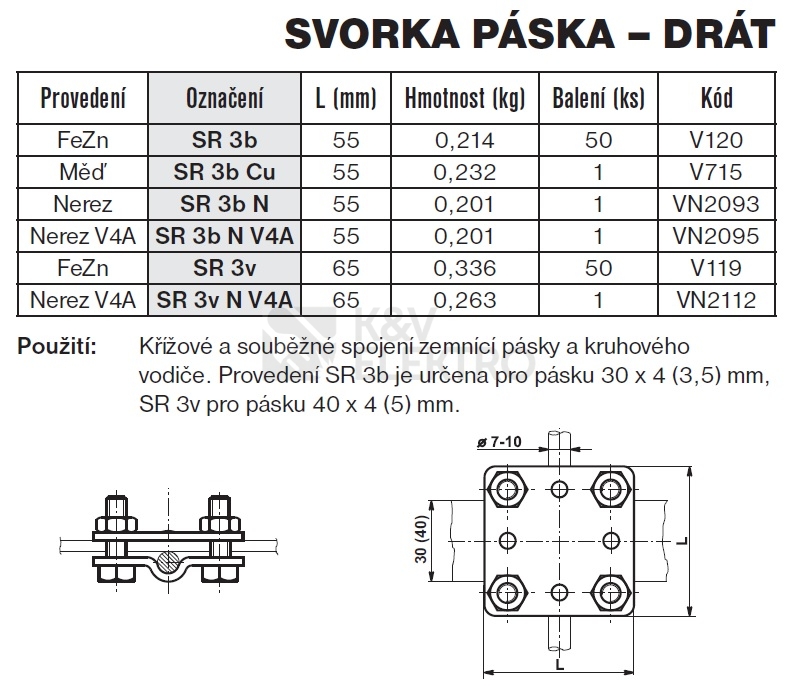

Specifikace svorky páska-drát SR 3b TREMIS V120

Svorka páska-drát SR 3b od TREMIS se využívá pro spojení zemnící pásky o velikosti 30 x 4 (3,5) mm a kruhového vodiče Rd 7-10.

Zatímco zemnicí páska tvoří součást hromosvodu, kruhový vodič může být prvkem v elektroinstalačním systému. Svorka zajišťuje bezpečný spoj mezi těmito dvěma komponenty.

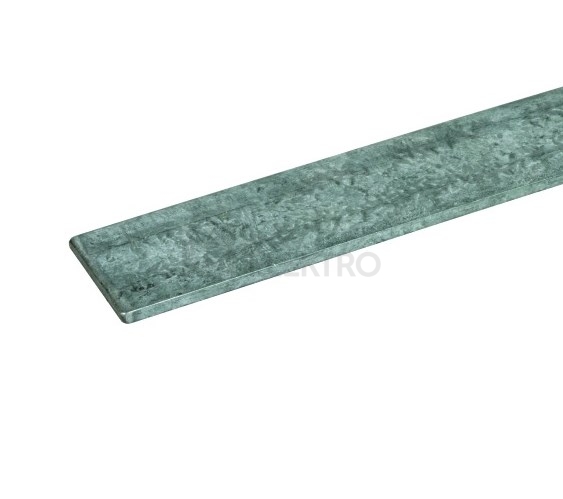

V našem sortimentu najdete kompletní sortiment pro sestavení kvalitního hromosvodu. Nabízíme zemnící pásek a zemnící tyče, dále zemnící dráty v provedení FeZn, Cu a hliníkové slitiny až po zemnící svorky, jímací tyče a držáky hromosvodu. Užitečným doplňkem jsou také ekvipotenciální svorkovnice a svodiče přepětí.

Technické detaily svorky páska-drát SR 3b TREMIS V120

Svorka páska-drát o variantě SR 3b TREMIS V120 byla zamýšlena pro kruhové vodiče o rozměrech Rd 7 – 10 nebo ploché vodiče FI 30. Vyrobeno z žárově pozinkované oceli. Upevnění přes šroub.

Vždy se řiďte poučením od výrobce a zásahy do elektroinstalace provádějte jen tehdy, jste-li k takovému úkonu oprávněni. V opačném případě přenechte instalaci na odborníkovi s příslušným certifikátem.

Certifikáty výrobku

Svorka páska-drát SR 3b TREMIS V120 splňuje příslušné normy ČSN.

O společnosti TREMIS

Česká společnost Tremis se od roku 1995 specializuje na výrobu kvalitních hromosvodů a uzemnění. Vybírejte z produktů Tremis, která váš dům spolehlivě ochrání před bleskem a následným požárem.
