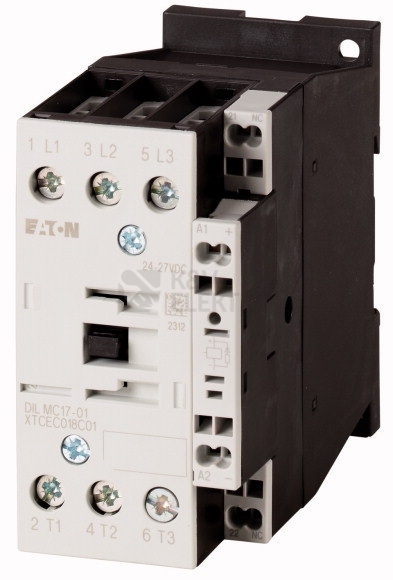

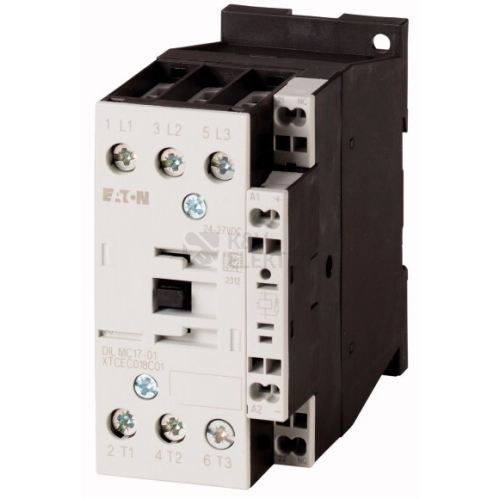

Stykač EATON DILMC17-01(220V50/60HZ) 18A 1NO 277618

Stykač EATON DILMC17-01(220V50/60HZ) 18A 1NO 277618

tip K&V
 Stykač EATON DILMC17-01(220V50/60HZ) 18A 1NO 277618
Výkonový stykač se svorkami s tažnou pružinou k rychlému a spolehlivému propojení. Stejné rozměry pro stykače ovládané pomocí AC a DC umožňují používat stejné příslušenství. Příslušenství k dodání: moduly pomocných spínačů k nasazení a boční montáž, zásuvné... číst více
e-shop: skladem (1 ks), doručíme: zítra
904,11
/ 1 ks
747,20 bez DPH
Objednací kód
1337224
Značka
EATON
Dodavatelský kód
277618
EAN
4015082776183
Výkonový stykač se svorkami s tažnou pružinou k rychlému a spolehlivému propojení. Stejné rozměry pro stykače ovládané pomocí AC a DC umožňují používat stejné příslušenství. Příslušenství k dodání: moduly pomocných spínačů k nasazení a boční montáž, zásuvné ochranné členy, mechanické blokování, elektronický časový modul, nadproudová relé, IP2X kryt

Značka

Dokumenty

Parametry

Dimenzované ovládací napájecí napětí Us AC 50Hz:
220 V
Dimenzované ovládací napájecí napětí Us AC 60Hz:
220 V
Dimenzované ovládací napájecí napětí Us DC:
0 V
Typ napětí pro ovládání a napájení:
AC
Dimenzovaný provozní proud Ie při AC-1, 400 V:
40 A
Dimenzovaný provozní proud Ie při AC-3, 400 V:
18 A
Dimenzovaný provozní výkon při AC-3, 400 V:
7,5 kW
Dimenzovaný provozní proud Ie při AC-4, 400 V:
10 A
Dimenzovaný provozní výkon Ie při AC-4, 400 V:
4,5 kW
Vhodné pro řadovou montáž:
Ne
Počet pomocných spínacích kontaktů (NO):
0
Počet pomocných rozpínacích kontaktů (NC):
1
Druh připojení hlavního proudového obvodu:
Šroubová svorka
Počet hlavních rozpínacích kontaktů (NC):
0
Počet hlavních spínacích kontaktů (NO):
3
