UPOZORNĚNÍ

Vážení zákazníci, ve státní svátky 5. a 6. 7. 2024 budou všechny naše pobočky K&V ELEKTRO zavřené a nebude dostupná ani naše zákaznická linka. Výdejna na pobočce Smíchov pro Vás bude otevřena od 7.00 do 20.00. Děkujeme za pochopení.

Velkoobchod a registrace

Fotovoltaika, solární systémy

Solární kabely a konektory

Solární konektor Stäubli MC4 PV-KBT 4/6 vidlice PV-I-KBT4II-UR/32.0714-UR

tip K&V

Solární konektor MC4 PV-KBT 4/6 (vidlice) od společnosti STÄUBLI využijete k připojení střídače, regulátoru nebo solárního panelu. Je určen pro jmenovité napětí 1000VDC a průřez vodiče 4 nebo 6mm². Nabízí stupeň krytí IP68.

e-shop: skladem (702 ks), doručíme: zítra

38,15 Kč

/ 1 ks

31,53 Kč bez DPH

Objednací kód

1696039

Značka

STÄUBLI

Dodavatelský kód

MC4 PV-KBT 4/6

EAN

Často se kupuje společně

38,15 Kč

31,53 Kč bez DPH

30,00 Kč

24,79 Kč bez DPH

35,03 Kč

28,95 Kč bez DPH

35,03 Kč

28,95 Kč bez DPH

Celkem

Kč

Popis, parametry a manuály

Solární konektor MC4 PV-KBT 4/6 (vidlice) od společnosti STÄUBLI využijete k připojení střídače, regulátoru nebo solárního panelu. Je určen pro jmenovité napětí 1000VDC a průřez vodiče 4 nebo 6mm². Nabízí stupeň krytí IP68.

Specifikace solárního konektoru-vidlice STÄUBLI MC4 PV-KBT 4/6 PV-I-KBT4II-UR/32.0714-UR

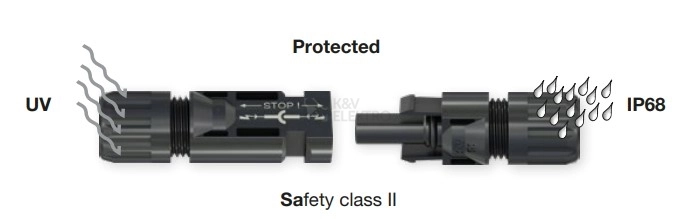

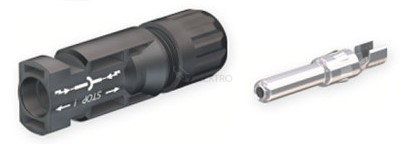

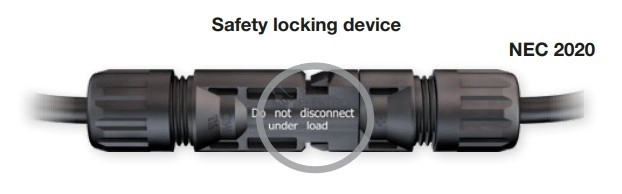

Solární konektor MC4 PV-KBT 4/6 (samec) připojíte pomocí krimpování a 4mm připojovacího kolíku, který je součástí dodávky. Vidlici jednoduše propojíte s jejím protějškem (MC4 PV-KST 4/6 zásuvka-samice) secvaknutím k sobě. Po propojení nabízí konektory stupeň krytí IP 68, což znamená, že zcela odolají prachu i potopení do vody (1h/1m). Vidlice MC4 PV-KBT 4/6 je určena pro použití s kabelem o průměru 5-6mm.

Nabízíme i další vybavení pro zřízení fotovoltaického systému, tudíž si u nás můžete pořídit třeba solární panely, síťové střídače, regulátory nabíjení, solární baterie nebo elektroměrové rozvaděče. Najdete u nás i bohatou nabídku kabelů a k nim náležejícího příslušenství.

Rozměry solárního konektoru (samce) STÄUBLI MC4 PV-KBT 4/6 jsou: 18,8mm průměr a 58mm délka.

Technické detaily solárního konektoru (samce) STÄBLI MC4 PV-KBT 4/6

Solární konektor (vidlice) STÄBLI MC4 PV-KBT 4/6 je konstruován pro proud max. 39A. Kontaktní odpor činí ≤0,25mΩ, jmenovité impulsní napětí 12kV. Rozsah okolní teploty pro provoz je -40 až +85°C.

Vždy se řiďte postupem od výrobce a montáž provádějte jen tehdy, jste-li k takovému úkonu oprávněni. V opačném případě přenechte instalaci na odborníkovi s příslušným certifikátem.

Certifikáty výrobku

Solární konektor Stäubli MC4 PV-KBT 4/6 vidlice splňuje příslušné normy ČSN.

O společnosti STÄUBLI

Společnost STÄUBLI se z malé dílny v Horgenu/Curychu – založené v roce 1892 – vyvinula v globálního poskytovatele řešení v oblasti mechatroniky provozující čtyři specializované divize. První je Electrical Connectors, druhá Fluid Connectors, třetí Robotics a poslední Textile Machinery. Dnes má STÄUBLI již více jak 5 500 zaměstnanců po celém světě.
