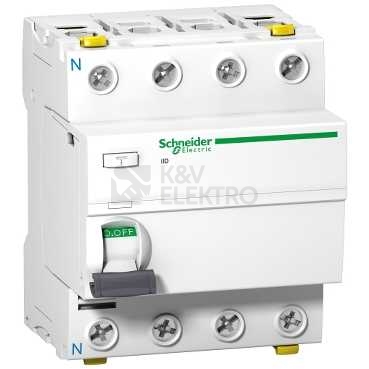

Proudový chránič Schneider Electric Acti9 iID 4P 25A 30mA A A9Z21425

e-shop: skladem (401 ks), doručíme: zítra

954,10 Kč

/ 1 ks

788,51 Kč bez DPH

Objednací kód

1155479

Značka

Schneider Electric

Dodavatelský kód

A9Z21425

EAN

3606480443176

Často se kupuje společně

Celkem

Kč

Popis, parametry a manuály

Acti 9 - iID modulární a spolehlivý proudový chránič s dvojitou svorkou (RCCB). Je to 4P jistič se jmenovitým proudem 25 A, třída ochrany A a citlivost chrániče 30 mA. Tento výrobek je chráněn proti zasažení elektrickým proudem pomocí přímých nebo nepřímých kontaktů a nebezpečí požáru. Provádí funkci odpojení elektrických obvodů v případě zemní poruchy. Jedinečný indikátor VISitrip zkracuje dobu zásahu zobrazením vadného zařízení s mechanickým ukazatelem na přední straně. Tento produkt má také okno VisiSafe se zeleným pásem na páčce označující plné otevření pólů umožňující následnou údržbu Tento produkt je v souladu se standardem ENG/IEC 61008-1. Jmenovitá vypínací a zkratová kapacita (Im/ΙΔm) je 1500 A. Podmíněný jmenovitý zkratový proud (Inc/ΙΔc) je 10 kA. Elektrická životnost je až 15000 cyklů. Mechanická životnost je až 20 000 cyklů. Provozní napětí Ue je 380 VAC až 415 VAC. Jmenovité izolační napětí Ui je 500 VAC. Impulzní výdržné napětí Uimp je 6 kV. Frekvence je 50 Hz nebo 60 Hz. Lze ji upevnit na lištu DIN. Šířka v roztečí 9 mm je 8. Barva produktu je bílá (RAL9003). Rozměry jsou (Š) 72 mm x (V) 91 mm x (H) 73 mm. Hmotnost je 0,37 kg. Má stupeň ochrany IP20. Norma IP40 se stává jednou z modulárních skříní podle normy IEC/EN 60529. Provozní teplota je od -25 °C do 60 °C. Skladovací teplota je od -40 °C do 85 °C.
