UPOZORNĚNÍ

Vážení zákazníci, ve státní svátky 5. a 6. 7. 2024 budou všechny naše pobočky K&V ELEKTRO zavřené a nebude dostupná ani naše zákaznická linka. Výdejna na pobočce Smíchov pro Vás bude otevřena od 7.00 do 20.00. Děkujeme za pochopení.

Velkoobchod a registrace

Elektroinstalační materiál

Modulové a paticové přístroje

Proudové chrániče

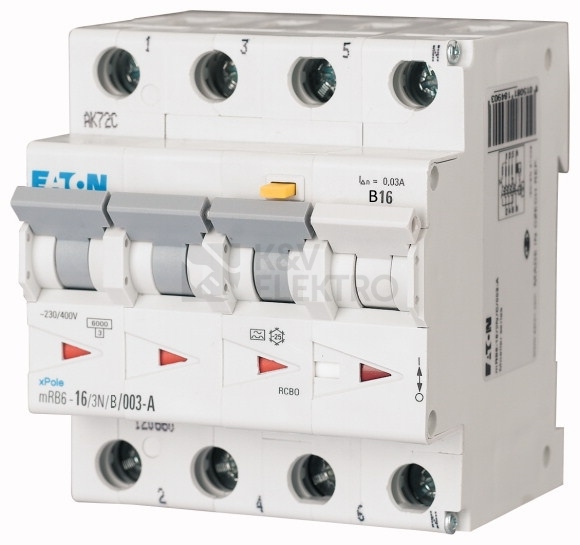

Proudový chránič s jističem EATON mRB6-16/3N/B/003-A 16A 30mA A 120652

zdarma

tip K&V

Proudový chránič s jističem EATON mRB6-16/3N/B/003-A 16A 30mA A 120652

e-shop: skladem (17 ks), doručíme: zítra

5 294,84 Kč

/ 1 ks

4 375,90 Kč bez DPH

Objednací kód

1235133

Značka

EATON

Dodavatelský kód

120652

EAN

4015081184828

Popis, parametry a manuály

Kvalitní kombinace proudový chránič / jistič vedení nezávislá na síťovém napětí, indikátor polohy kontaktu červeno-zelený, ukazatel reakce při chybném proudu bílo-modrý, chránič usnadňující upevnění svorky, tristabilní posuvný díl s aretací – umožňuje rozšířit vybavení ze stávajícího svazku přípojnic, obsáhlý program příslušenství s možností dodatečné montáže, velký výběr hodnot jmenovitého chybného proudu, jmenovitý proud do 32 A, spínací charakteristiky B, C, D, jmenovitá spínací schopnost 6 kA (do 16A) nebo 4,5kA (20-32A), vhodný k používání pod širým nebem (rozvod proudu ve stavbě a rozvod venkovního vedení) do -25 °C

Proudový chránič s nadproudovou ochranou, neboli jističochránič, kombinuje funkce chrániče s jističem. Instaluje se k ochraně elektrických obvodů a spotřebičů před účinky přetížení a zkratu, k ochraně elektrických obvodů před svodovými proudy i k ochraně osob před úrazem elektrickým proudem. Podívejte se na celou nabídku Jističochráničů v kategorii, nebo na samostatné proudové chrániče a jističe.

Značka

EATON

Dokumenty

Katalogový list

Parametry

Počet pólů (celkem):

Počet jištěných pólů:

Dimenzované napětí:

400 V

Dimenzovaný proud:

16 A

Jmenovitý reziduální proud:

0,03 A

Typ svodového proudu:

Třída omezení energie:

Dimenzovaná spínací schopnost dle EN 60898:

6 kA

Dimenzovaná spínací schopnost dle IEC 60947-2:

6 kA

Frekvence:

50 Hz

Vypínací charakteristika:

Společně spínaný neutrální vodič:

Ano

Kategorie přepětí:

Stupeň znečištění:

Šířka v počtech modulů:

Montážní hloubka:

70 mm

Vhodné pro instalaci pod omítku:

Krytí (IP):

IP20

Odolnost proti rázovému proudu:

0,25 kA

Druh napětí:

Ochrana proti nežádoucímu spuštění:

Kategorie

Proudové chrániče

Příslušenství a související (0)

Hodnocení a recenze (1)

Průměrné hodnocení

80 %Hodnotil: 1 uživatel

Váš názor nás zajímá

80 %

Jiří21. 9. 2018

+Chránič a jistič v jednom

Proudový chránič s jističem EATON mRB6-16/3N/B/003-A 16A 30mA A je ideální pro chránění jednoho třífázového okruhu, nebo jako předřazené jištění pro kombinované zásuvky.
