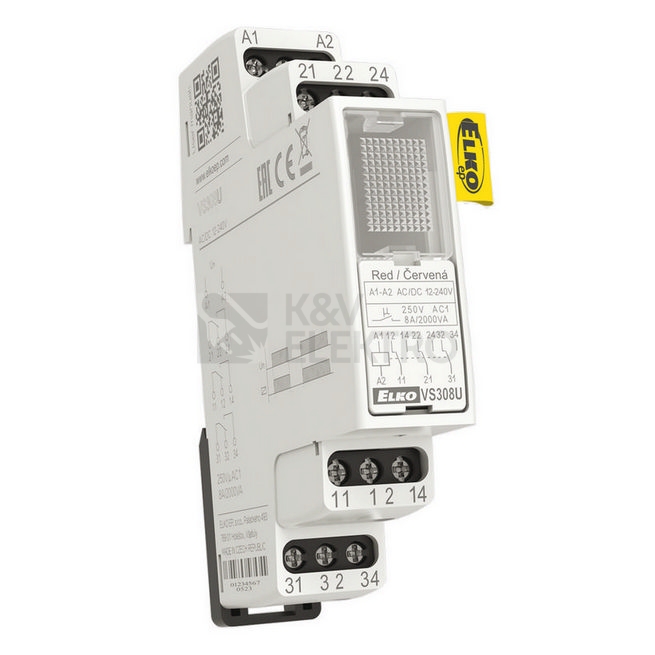

Pomocné relé Elko EP VS308U 3x8A přepínací UNI červená

e-shop: skladem (31 ks), doručíme: zítra

527,74 Kč

/ 1 ks

436,15 Kč bez DPH

Objednací kód

1149103

Značka

ELKO EP

Dodavatelský kód

3010 standard

EAN

8595188130103

Popis, parametry a manuály

Určeno ke spínání většího výkonu zátěže, posílení či rozmnožení kontaktů stávajícího zařízení. POPIS Řada VS obsahuje celkem 6 typů pomocných relé – VS116K, VS116U, VS308K, VS308U, VS316/24, VS316/230. Pomocné ovládání osvětlení, signalizace, reléová stavědla, bojlery, HDO, přímotopy apod. VS308K a VS316 díky většímu počtu kontaktů umožňují rozmnožit výstup na tři nezávislé přepínací kontakty, kterými lze spínat tři libovolné nezávislé zátěže. VS316K můžete přímo připojit do třífázového obvodu TECHNICKÉ PARAMETRY Napájecí napětí: VS116K, VS308K: AC/DC 24 V nebo AC 230 V VS116U, VS308U: AC/DC 12-240 V nebo AC 230 V VS316: AC/DC 24 V nebo AC 230 V (potřeba definovat předem) Výstupní kontakt: VS116K, VS116U: 1x přepínací 16 A (AgSnO2) VS308K, VS308U: 3x přepínací 8 A (AgNi) VS316: 3x přepínací 16 A (AgSnO2) V provedení 1-MODUL, upevnění na DIN lištu
