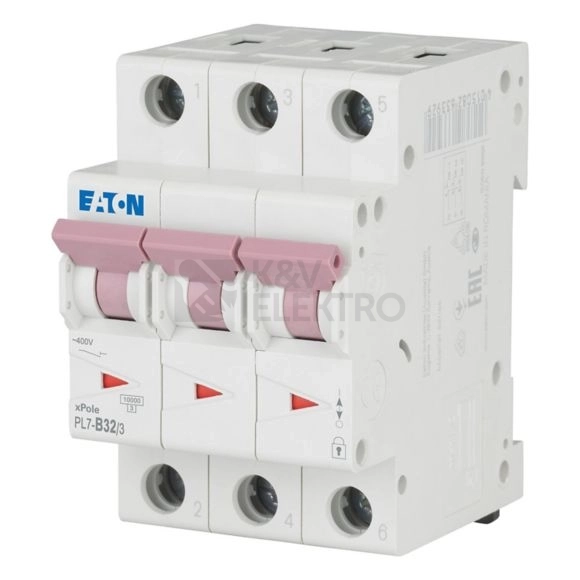

Jistič EATON PL7-B32/3 32A 263392

Kvalitní třípólový jistič EATON PL7-B32/3 slouží pro použití v domácnostech a účelových stavbách lehkého průmyslu. Nezapomeňte si k němu pořídit vhodnou propojovací lištu. Umožňuje dodatečnou montáž příslušenství.

e-shop: skladem (834 ks), doručíme: zítra

699,23 Kč

/ 1 ks

577,88 Kč bez DPH

Objednací kód

1183603

Značka

EATON

Dodavatelský kód

263392

EAN

4015082633929

Často se kupuje společně

699,23 Kč

577,88 Kč bez DPH

551,23 Kč

455,56 Kč bez DPH

1 607,87 Kč

1 328,82 Kč bez DPH

536,65 Kč

443,51 Kč bez DPH

Celkem

Kč

Popis, parametry a manuály

Kvalitní třípólový jistič EATON PL7-B32/3 slouží pro použití v domácnostech a účelových stavbách lehkého průmyslu. Nezapomeňte si k němu pořídit vhodnou propojovací lištu. Umožňuje dodatečnou montáž příslušenství.

Specifikace jističe EATON PL7-B32/3 32A, 263392

Jistič EATON PL7-B32/3 32A 263392 je třípólový jistič, který rozpojí elektrický obvod při proudu 32 A. Zkratová odolnost činí 10 kA a jistič spadá pod charakteristiku B. Stupeň krytí je IP20.

Vybrat si můžete také jističe s odlišným jmenovitým proudem. Nejčastější jsou jističe 16A, jističe 25A a jističe 10A s charakteristikou B či charakteristikou C. Nabízíme však i další modulové a paticové přístroje, jako třeba proudové chrániče, elektroměry, motorové spouštěče, pojistkové odpínače a další. Za prohlídku jistě stojí i naše bohatá nabídka nejrůznějších kabelů a konektorů.

Technické detaily jističe EATON PL7-B32/3 32A, 263392

Jistič EATON PL7-B32/3 32A 263392 je určen pro dimenzované napětí 400 V. Proud 32 A. Zkratová schopnost 10 kA. Druh napětí AC. Frekvence 50 - 60 Hz. Montážní hloubka 70,5 mm. Krytí IP20. Provozní teplota okolí min. -25 °C max. 75 °C.

Vždy se řiďte postupem od výrobce. Zásahy do elektroinstalace provádějte jen tehdy, jste-li k takovému úkonu oprávněni. V opačném případě přenechte instalaci na odborníkovi s příslušným certifikátem.

Certifikáty výrobku

Jistič EATON PL7-B32/3 32A 263392 splňuje příslušné normy ČSN.
