K&V ELEKTRO
Jistič EATON PL6-B2/1 2A 286516

Jistič EATON PL6-B2/1 2A 286516

Jistič EATON PL6-B2/1 2A 286516
Jistič EATON PL6-B2/1 2A 286516 disponuje dobrým poměrem cena/výkon od prověřeného výrobce EATON. Další informace k produktu naleznete níže.
e-shop: skladem (936 ks), doručíme: zítra
167,40
/ 1 ks
138,35 bez DPH
Objednací kód
1180887
Značka
EATON
Dodavatelský kód
286516
EAN
4015082865160

Často se kupuje společně

167,40
138,35 bez DPH
1180888
154,89
128,01 bez DPH
1180825
864,19
714,21 bez DPH
1180821
883,35
730,04 bez DPH
1946379
536,65
443,51 bez DPH
Celkem

Jistič PL6

Jmenovité napětí 230/400V AC; 48 V DC

Třída selektivity 3 – vysoká omezovací schopnost při zkratu

Maximální předřazená pojistka 100 A gL

Stupeň krytí IP20

Signalizace vypnuto-zapnuto

Průřez připojovaných vodičů 1–25 mm2

Libovolná montážní poloha

Možnost dodatečné montáže příslušenství

Charakteristika B, vypínací schopnost 6 kA

Použití pro jištění světelných a zásuvkových obvodů s nízkými proudovými rázy

Značka

Dokumenty

Parametry

Vypínací charakteristika:
B
Počet pólů (celkem):
1
Počet jištěných pólů:
1
Dimenzovaný proud:
2 A
Dimenzované napětí:
230 V
Zkratová schopnost při 230V Icn EN 60898:
6 kA
Zkratová schopnost při 400V Icn EN 60898:
6 kA
Zkratová schopnost:
6 kA
Zkratová schopnost při 400V Icu ČSN EN 60947-2:
0 kA
Druh napětí:
AC
Třída omezení energie:
3
Frekvence:
50 - 60 Hz
Společně spínaný neutrální vodič:
Ne
Kategorie přepětí:
3
Stupeň znečištění:
2
Šířka v počtech modulů:
1

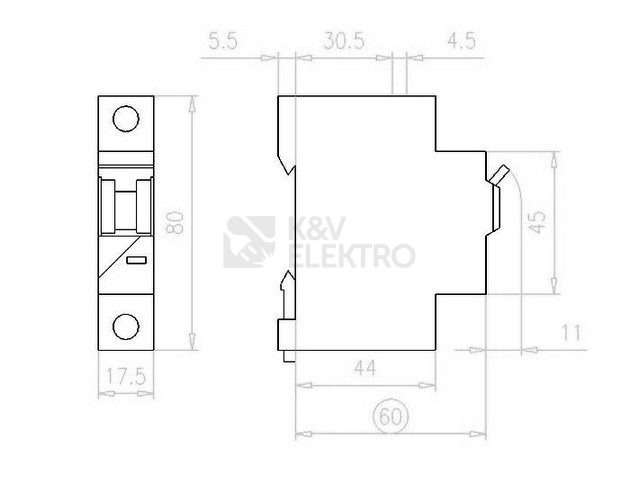

Montážní hloubka:
70,5 mm
Možnost vybavení doplňkovými zařízeními:
Ano
Krytí (IP):
IP20
