Gelová spojka LEDJOY IP68 3x1,5mm2 ULTRA tenká 1005430

tip K&V

Spojka gelová LEDJOY IP68 se svorkovnicí 3x (0,5÷1,5mm2), ULTRA tenké provedení, jmenovité napětí 450V, přímé spojení, rozměry: 118x25mm Patentované provedení těla spojky technologií dvoukomponentního vstřikování - těsnění je tedy jednolitě spojeno s... číst více

e-shop: skladem (28 ks), doručíme: zítra

348,79 Kč

/ 1 ks

288,26 Kč bez DPH

Objednací kód

1615492

Značka

Etelec

Dodavatelský kód

1005430

EAN

8058774266766

Popis, parametry a manuály

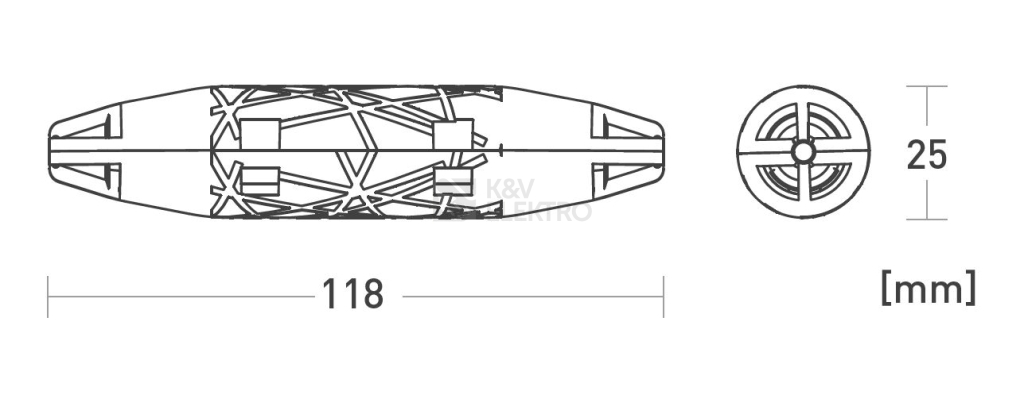

Spojka gelová LEDJOY IP68 se svorkovnicí 3x (0,5÷1,5mm²), ULTRA tenké provedení, jmenovité napětí 450V, přímé spojení, rozměry: 118x25mm

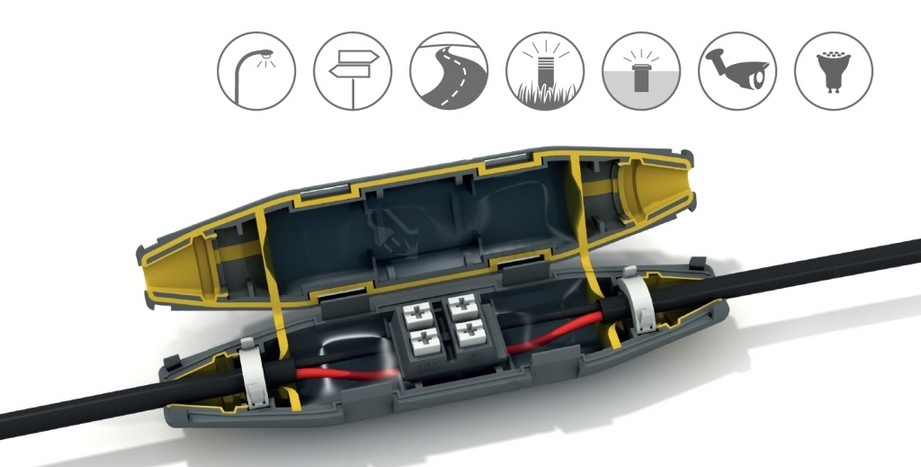

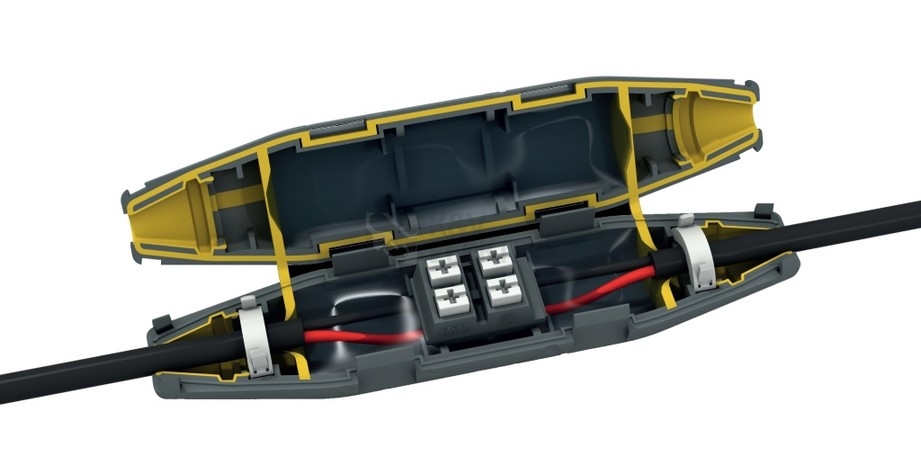

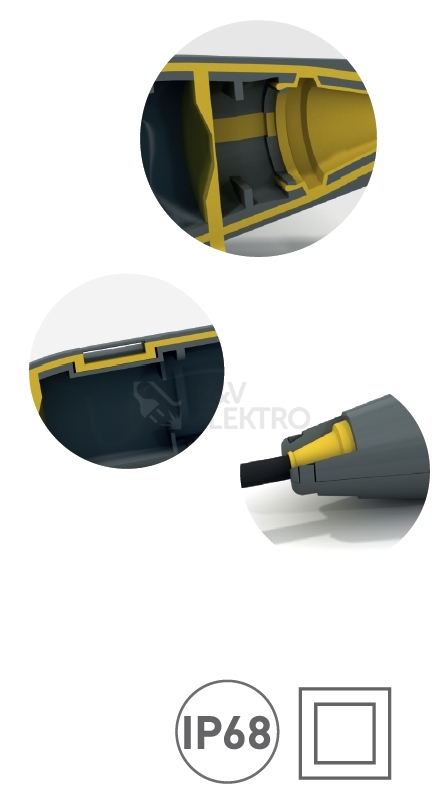

Patentované provedení těla spojky technologií dvoukomponentního vstřikování - těsnění je tedy jednolitě spojeno s plastovým tělem - to zajišťuje maximální ochranu spoje. Prostor pro ochranný gel (který je již předvyplněn) je ohraničen gumovým těsněním - není nutné nic vylamovat a zjednodušuje se tím montáž.

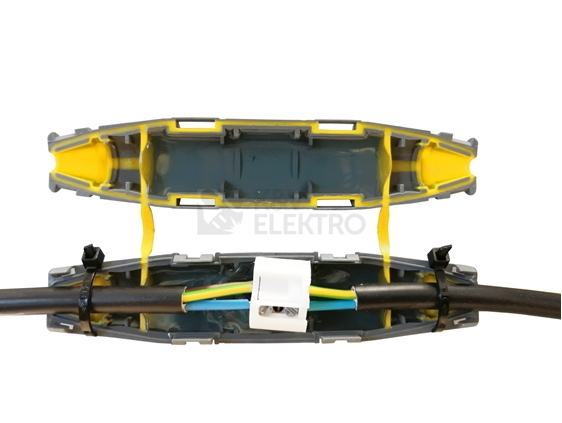

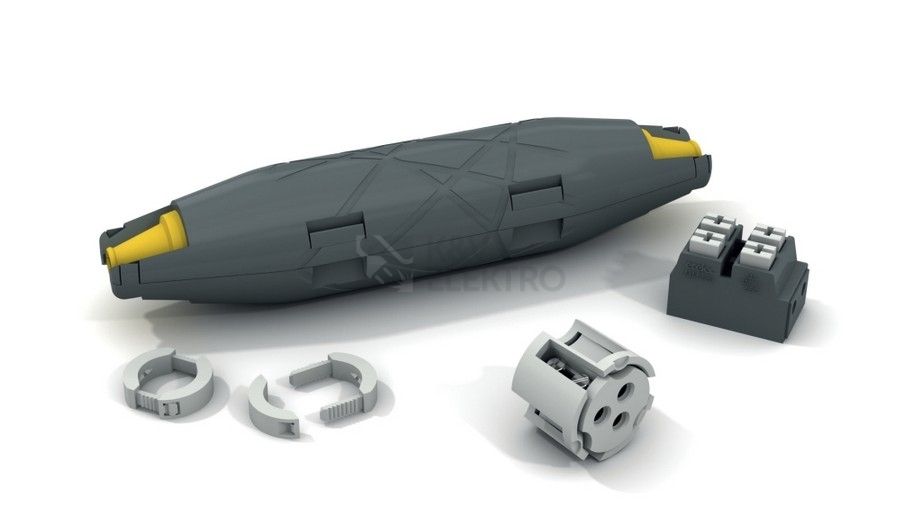

Součástí balení jsou připojovací svorky pro pevné i laněné vodiče - 1ks 2-pólové svorky s bezšroubovou technologií a 1ks 3-pólové šroubové svorky pro průřezy 0,5 až 1,5 mm2. Rozsah průměru kabelu je 5 - 9 mm.
Ochrana proti vytrhnutí kabelu je zajištěna jednoduchou a funkční sponkou u obou vstupů.

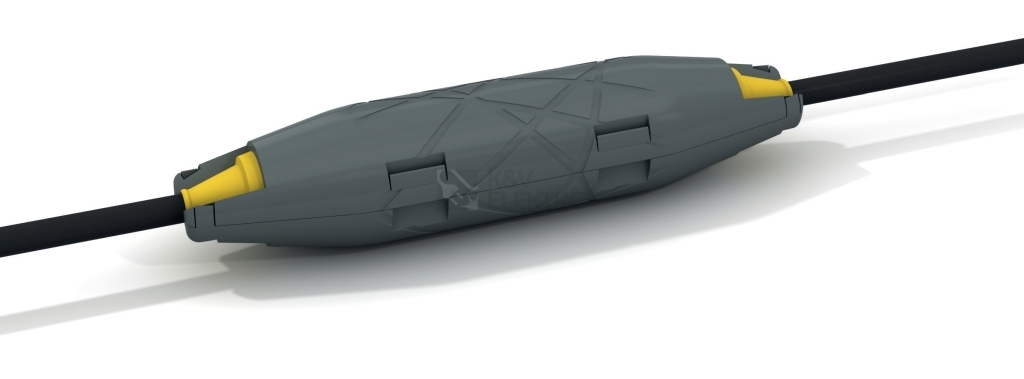

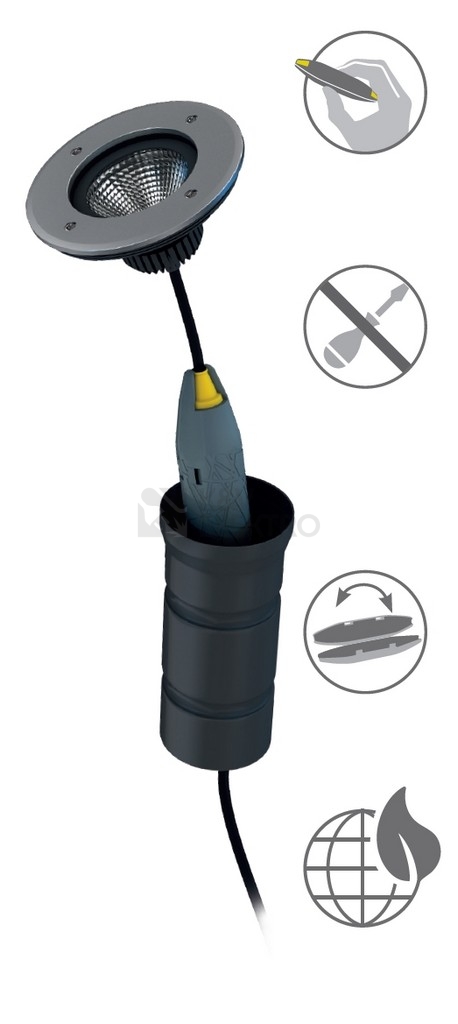

Co je na spojce LEDJOY vyjímečné je její miniaturní velikost. S průměrem pouhých 25 mm protáhnete spojku i tím nejmenším otvorem - což je pro aplikaci svítidel nezbytně nutné. Revoluční je ochrana připojovaného kabelu svítidla proti vzlínající vlhkosti skrz vodiče - tím, že jsou kabel a vodiče ponořeny do gelové hmoty, chrání elektroniku svítidla před vlhkostí, která se může dostat do hermeticky uzavřeného pouzdra světla právě jen nesprávnou instalací.
Spoj je možné v budoucnosti rozebrat - gel je po celou dobu životnosti spoje stále pružný.
Krytí IP68 je perfektní pro aplikace pod zemí, pod vodou a i v dalších prostředích, kde je možný styk s prachovými částicemi, vlhkostí či přímo s vodou.
Spojka je netoxická a z nepodléhá expiraci. Rozsah teplot okolí je -20°C až 90°C, což je pro 99 % aplikací naprosto dostačující.
Využití najde LEDJOY IP68 zejména v:
- moderních veřejných osvětleních a ochraně napájení elektroniky osvětlovací techniky
- ochraně osvětlení bazénů, fontán, parkových svítidel apod.
a dále pro ochranu průmyslových kamerových systému, automatických bran,...

Max. proud je 24 A a jmenovité napětí až 450 V.

Splňuje požadavky technických norem: EN60998-2-2, EN 60529, 1272/2008 (CLP).
